Compact Version Sensor Operated Two Brush Sole Washer

Automatically detects the passage of the user at each end of the machine via infra-red sensor

  • Designed for continuous passage: the unit can be installed in a location making its use mandatory
  • Clean soles by the action of horizontal rotating brushes and water-detergent mixture
  • Dismantling without the need of tool for easy cleaning of the brushes and housing
  • Supplied with a venturi metering system for accurate dosing of the detergent

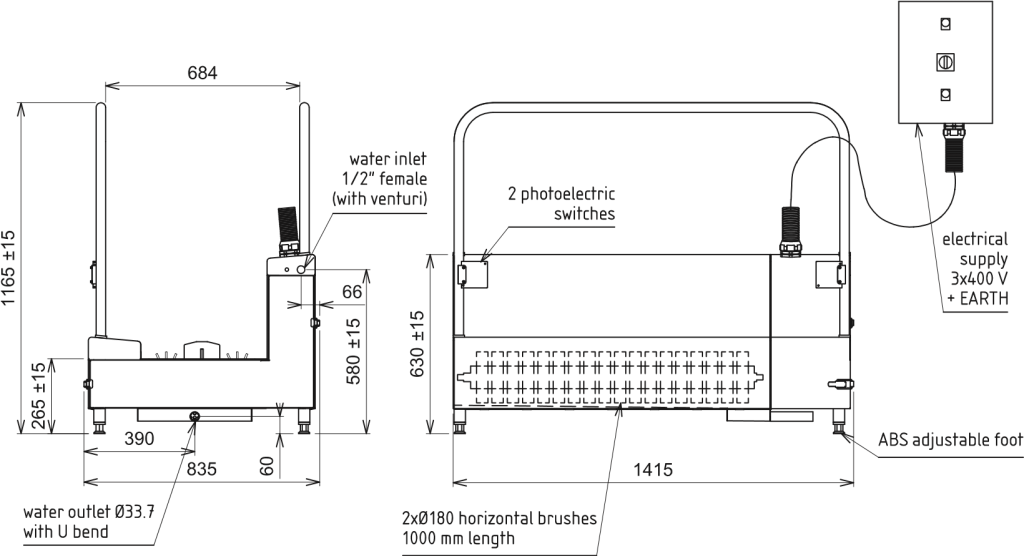

Dimensional drawing for sensor operated two brush sole washer

Specifications

  • 304 stainless steel construction
  • Bead blasted surface finish
  • Two horizontal rotating brushes
  • Adjustable dosing system: 0.2 to 9.3%
  • Foot print dimensions: 1,415 x 835 mm
  • Perforated waste basket

Water supply

  • Recommended pressure: 3 bars
  • Maximum temperature: 50° C
  • Water flow rate: 7 l/min

Power

  • 3 phase 400 V + earth - 50 Hz - Power 0.80 kW
